전원공급장치

방산 분야 전원 제어기술을 바탕으로 고효율, 저발열의 신뢰성이 있는 전원장치를 공급합니다.

높은 품질 수준을 요구하는 전원 모듈과 고객 시스템 맞춤형 전원부 설계 능력을 보유하고 있습니다.

Power supplies

•

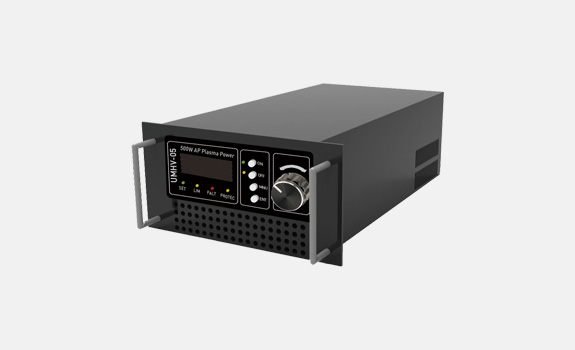

  UMHV-05

  Specification

  • - Output power : 500W
  • - Max. output Voltage : 10kV(Peak)
  • - Adjustable frequency(20 ~ 60KHz)
  • - Interface : RS-485 / 232 / Remote / Local / MFC
  • - Air, N2 mass flow control
  • - Length(mm) : 257(W) x 132(H) x 544(D)
  • - Weight : 8.5kg
  • - Operation temp : +5℃ ~ 40℃
  • - Input : Single-Phase, 220VAC, 50~60Hz, < 3.5A (nominal), Fuse 10A
•

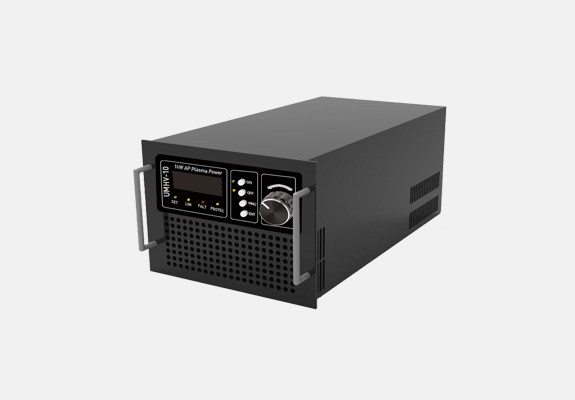

  UMHV-10

  Specification

  • - Output power : 1kW
  • - Max. output Voltage : 10kV(Peak)
  • - Adjustable frequency(20 ~ 60KHz)
  • - Interface : RS-485 / 232 / Remote / Local / MFC
  • - Air, N2 mass flow control
  • - Length(mm) : 257(W) x 177(H) x 544(D)
  • - Weight : 9.5kg
  • - Operation temp : +5℃ ~ 40℃
  • - Input : Single-Phase, 220VAC, 50~60Hz, < 7.0A (nominal),Fuse 15A
•

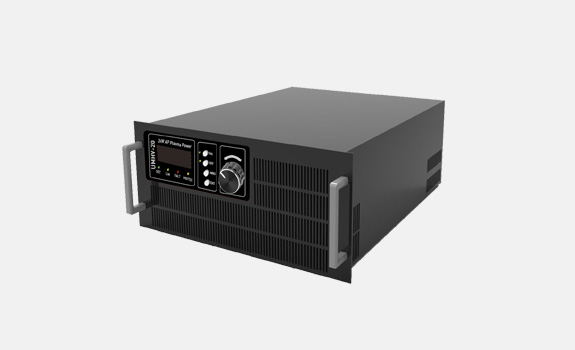

  UMHV-20

  Specification

  • - Output power : 2kW
  • - Max. output Voltage : 10kV(Peak)
  • - Adjustable frequency(20 ~ 60KHz)
  • - Interface : RS-485 / 232 / Remote / Local / MFC
  • - Air, N2 mass flow control
  • - Length(mm) : 483(W) x 175(H) x 590(D)
  • - Weight : 28.0kg
  • - Operation temp : +5℃ ~ 40℃
  • - Input : Single-Phase, 220VAC, 50~60Hz, < 15.0A (nominal), C/P 30A
•

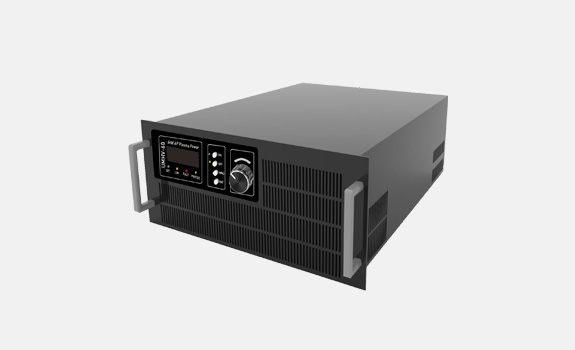

  UMHV-60

  Specification

  • - Output power : 6kW
  • - Max. output Voltage : 10kV(Peak) , 15kV(Optional)
  • - Adjustable frequency(20 ~ 60KHz)
  • - Interface : RS-485 / 232 / Remote / Local / MFC
  • - Air, N2 mass flow control
  • - Length(mm) : 483(W) x 177(H) x 645(D)
  • - Weight : 32.0kg
  • - Operation temp : +5℃ ~ 40℃
  • - Input : Three-Phase, 220VAC, 50~60Hz, < 20.0A (nominal), C/P 30A
•

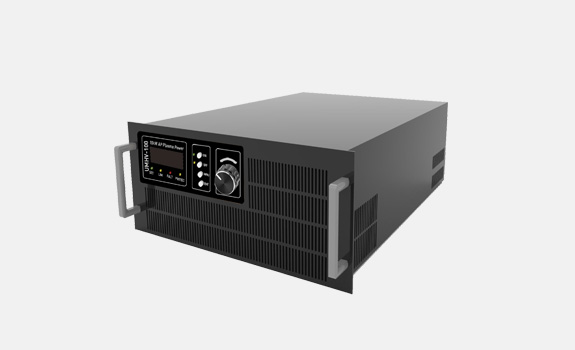

  UMHV-100

  Specification

  • - Output power : 10kW
  • - Max. output Voltage : 10kV(Peak) , 15kV(Optional)
  • - Adjustable frequency(20 ~ 60KHz)
  • - Interface : RS-485 / 232 / Remote / Local / MFC
  • - Air, N2 mass flow control
  • - Length(mm) : 483(W) x 222(H) x 645(D)
  • - Weight : 45.0kg
  • - Operation temp : +5℃ ~ 40℃
  • - Input : Three-Phase, 220VAC, 50~60Hz, < 30.0A (nominal), C/P 40A

Fuel cell components

•

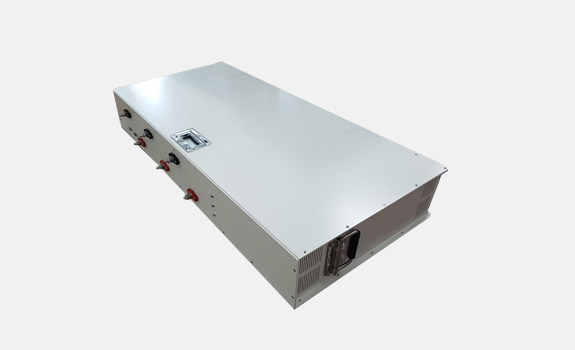

  Battery Pack

  Specification

  • - Battery capacity : 51.8V / 200Ah(MAX 3C)
  • - Interface : CAN 2.0B 500kBPS 1CH / RS-232 1CH
  • - Protection : Over voltage / Low voltage / Over current / Over Heating
  • - Length(mm) : 1019(W) x 122(H) x 502(D)
  • - Weight : 98.0kg
  • - Operation temp : 0℃ ~ 40℃ (Charge) , -20℃ ~ 60℃ (Discharge)
•

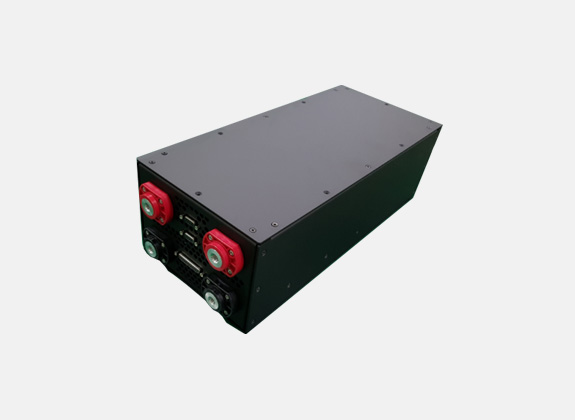

  DC/DC ConverterBattery Charger

  Specification

  • - Input : 31 ~ 50VDC / 200A
  • - Output : 42 ~ 54VDC / 150A
  • - Buck-boost, MPPT
  • - Interface : CAN 2.0B / RS-232
  • - Ripple : ±6%
  • - Efficiency : > 93%
  • - Switching frequency : 25kHz
  • - Length(mm) : 187(W) x 132(H) x 430(D)
  • - Weight : 16.0kg
  • - Operation temp : -20℃ ~ 45℃
•

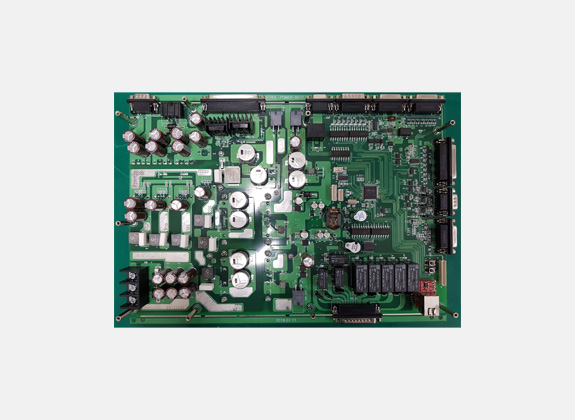

  TCU(Total Control Unit)Fuel cell system control and BOP power supply

  Specification

  • - Processor : ARM
  • - Interface : LAN 1CH / RS-232 2CH / DIO / CAN 2.0B / AD,DA / RS485 (All interface isolated)
  • - Input voltage : 48V ± 5V
  • - Output voltage : 12V/25A(Isolated), 48V/12A(Isolated), 48V(Non-Isolated), 24V(Isolated), 5V(Isolated)
  • - Protection : Over voltage / Low voltage / Over current / Over Heating
  • - Length(mm) : 320(W) x 240(H) x 50(D)
  • - Operation temp : -20℃ ~ 45℃
